Sand Slurry Pump
Kingda sand slurry pump is designed to handle the harshest pumping environments.
Whether it is high-density sand slurry or viscous mud, the sand slurry pump can efficiently handle these abrasive materials.
Understanding Anti-Abrasive Sand Slurry Pump
Kingda engineers specially design sand slurry pumps for highly abrasive solid slurries. Their optimized blade size facilitates the flow of high-density slurries, and their wider channel ensures long-term operation without clogging.
Our anti-abrasive sand slurry pumps are constructed from a durable, wear-resistant alloy. When pumping highly abrasive slurries, high-concentration sediment, and high-viscosity tailings, these pumps can easily withstand the impact and friction of sharp, hard solids.
The sand slurry pump’s impeller is constructed from a high-chromium alloy, offering unparalleled wear resistance. Compared to ordinary cast iron, high-chromium alloy offers greater toughness and impact resistance, effectively withstanding material impact and maximizing service life.
The Kingda sand slurry pump’s large channel design easily pumps solids up to 12 inches in diameter. Its special anti-clogging design ensures higher efficiency, making it an ideal choice for sand slurry transportation.
Sand Slurry Pump Features
Large channel design
Super wear-resistant impeller
Stronger impact resistance
Long service life
No clogging
Efficient pumping

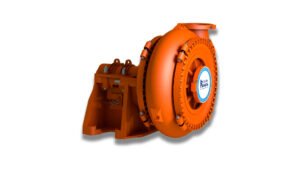

Kingda KSGH series horizontal sand slurry pumps offer excellent sand suction performance, and their wide channels prevent clogging, even when conveying large-diameter solid slurries.
To maximize the sand pumping machine’s lifespan, engineers designed an adjustable clearance mechanism. If the friction of the pump liner changes, users can easily adjust the bolts to prevent wear on internal pump components, significantly extending the pump’s lifespan and reducing operating costs.

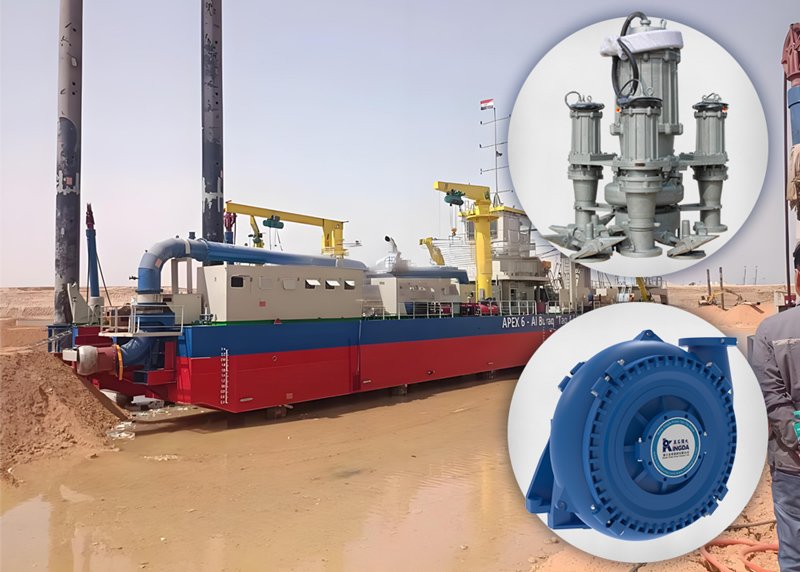

Kingda Sand Suction Pump Machine Handles Tough Conditions with Ease
What is sand slurry? Sand slurry primarily consists of sand and water, along with a significant amount of crushed stone and coarse particles. All of this creates strong friction, causing significant wear and tear on the pump during pumping.
Kingda sand suction pumping machine offer exceptional abrasion resistance and non-clogging capabilities, easily handling large-particle solid slurries such as sand, fly ash, mud, coal slag, tailings wastewater, lime slurry, and concrete.

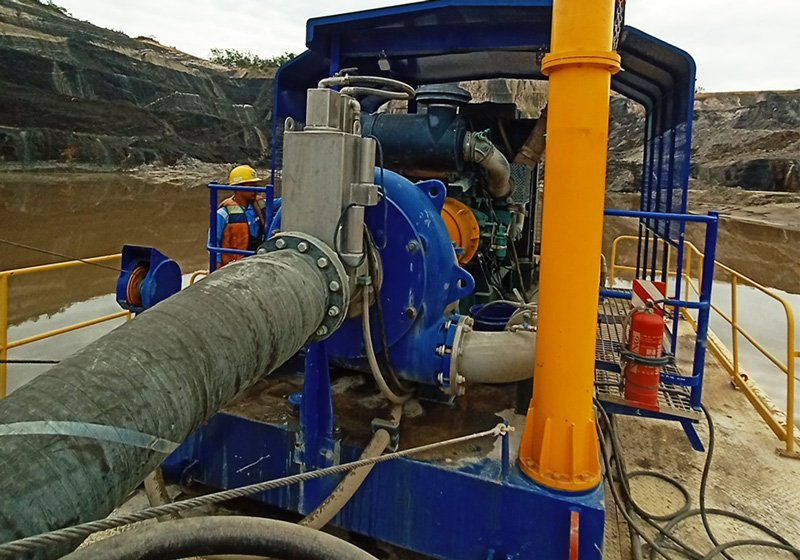

Main Applications:
- Mining tailings slurry transportation
- River sand extraction
- Quarry stone pumping
- Industrial sand-laden wastewater pumping
- Slurry pumping in sand washes
- Pulp transfer in paper mills

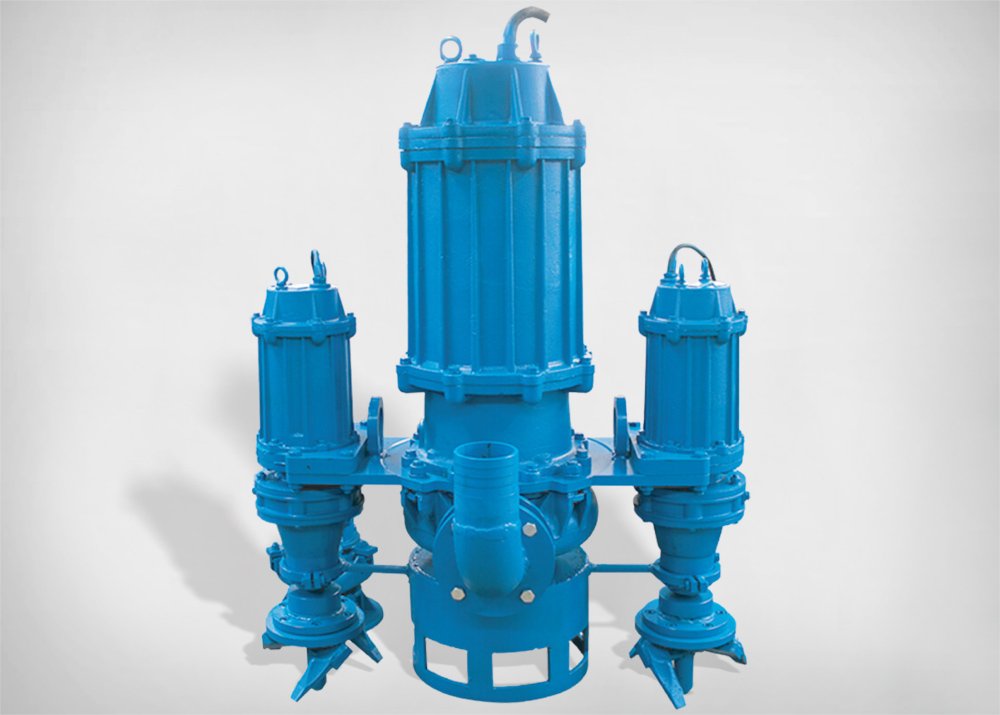

Submersible Sand Pump
🔸Discharge Diameter(mm): 50 ~ 350
🔸Capability(m³/h): 30 ~ 3500
🔸Head(m): 10 ~ 120
🔸Power(kw): 4 ~ 55

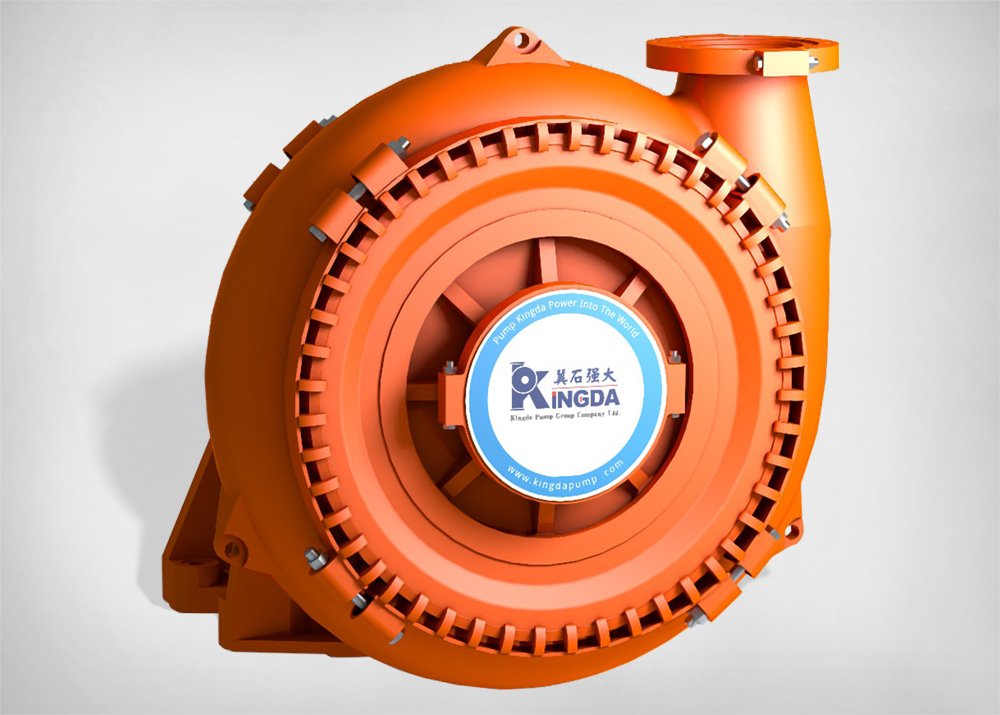

High Head Sand Slurry Pump
🔸Discharge Diameter(mm): 100 ~ 400
🔸Capability(m³/h): 60 ~ 6000
🔸Head(m): 10 ~ 85
🔸Power(kw): 60 ~ 1400

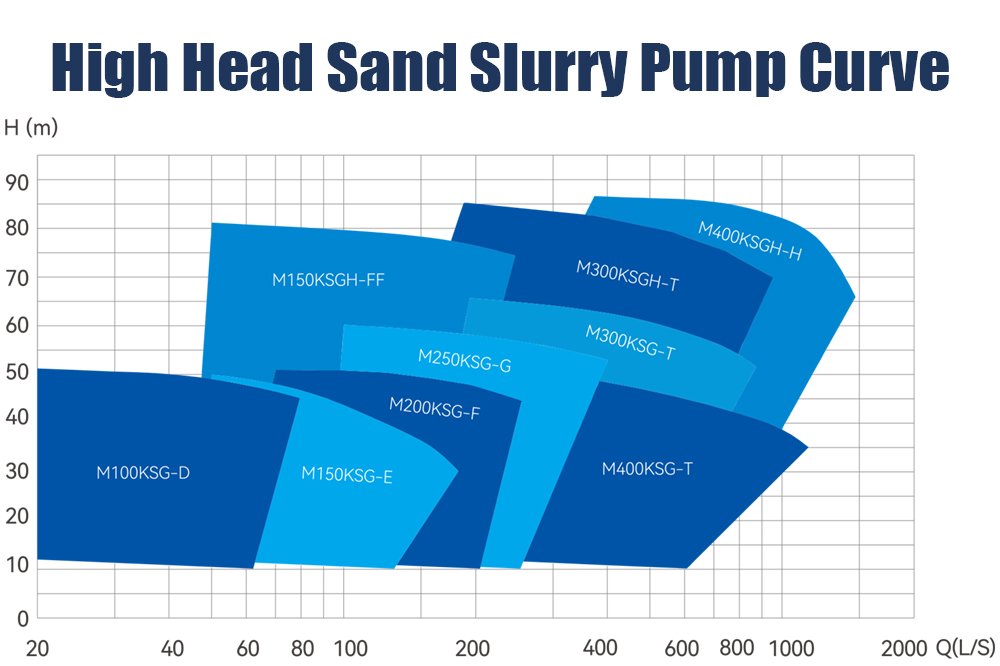

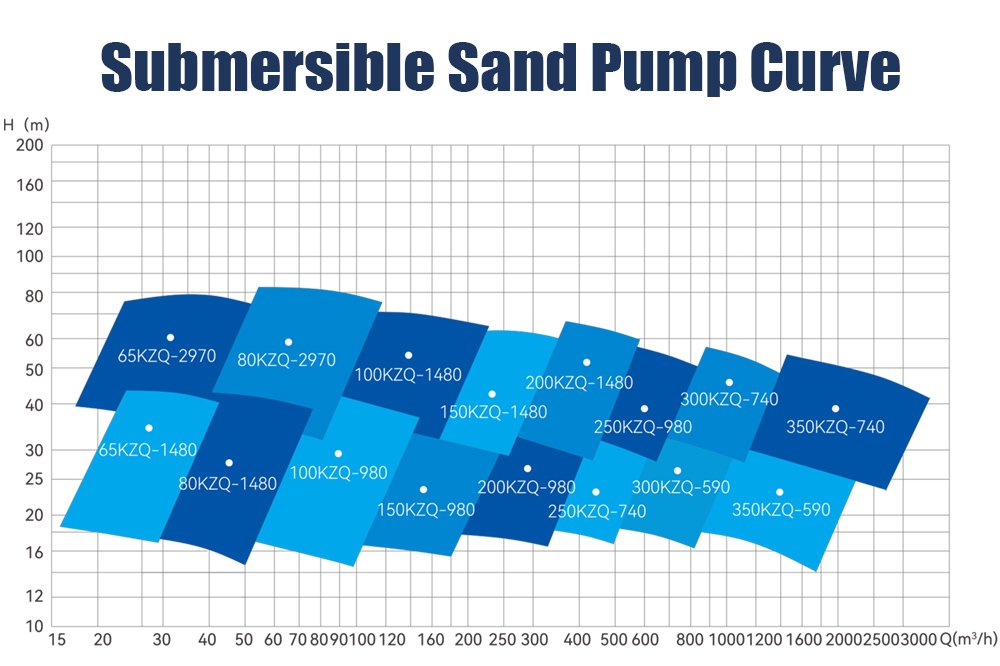

Sand Slurry Pump Curve

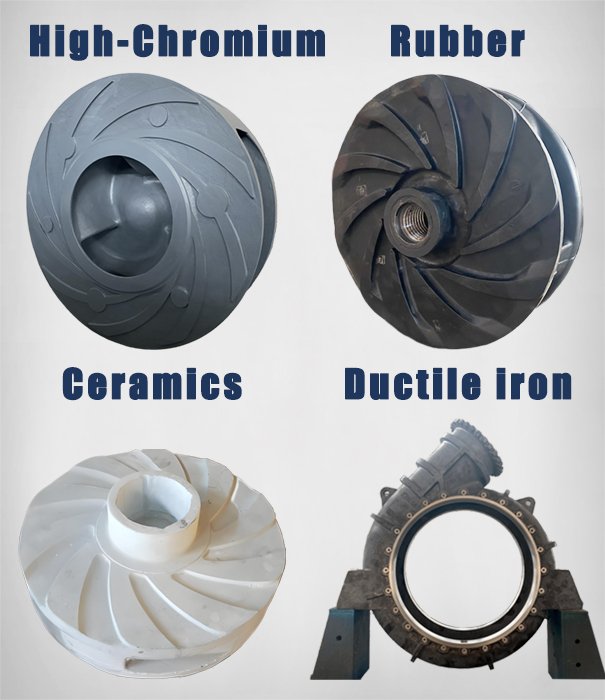

Why Material Matters in a Sand Sludge Slurry Pump
To mitigate slurry wear, extend the life of sand slurry pumps, and reduce overall sand suction project costs, Kingda has optimized materials to address abrasive slurry friction and improved the casting and heat treatment processes, enhancing the overall hardness and toughness of high-chromium alloy materials.
For erosive and corrosive slurries, Kingda offers rubber materials and wear-resistant ceramics. Engineers have optimized natural rubber to ensure the rubber can withstand the erosion of fine particles within the slurry.
For highly acidic, alkaline, and high-temperature materials, Kingda’s wear-resistant ceramics can withstand most corrosive environments. Their exceptional hardness withstands the impact of sharp, hard gravel, significantly extending the life of the slurry pump.
Kingda engineers will select the most suitable materials for each project, including ductile iron, high-chromium alloy, stainless steel, rubber, wear-resistant ceramics, and polyurethane. We strive to provide you with the most efficient fluid conveying solutions.
Best China Sand Slurry Pump Manufacturer, Since 1948
As China’s largest sand slurry pump manufacturer, Kingda has drawn upon countless customer experience to solve sand slurry pumping challenges. We guarantee to provide you with the most efficient solutions based on our experience.
Since 1948, Kingda has been dedicated to fluid transportation. We own China’s largest slurry pump production facility and a comprehensive slurry pump production line, ensuring we maintain a comprehensive inventory of spare parts and accessories.

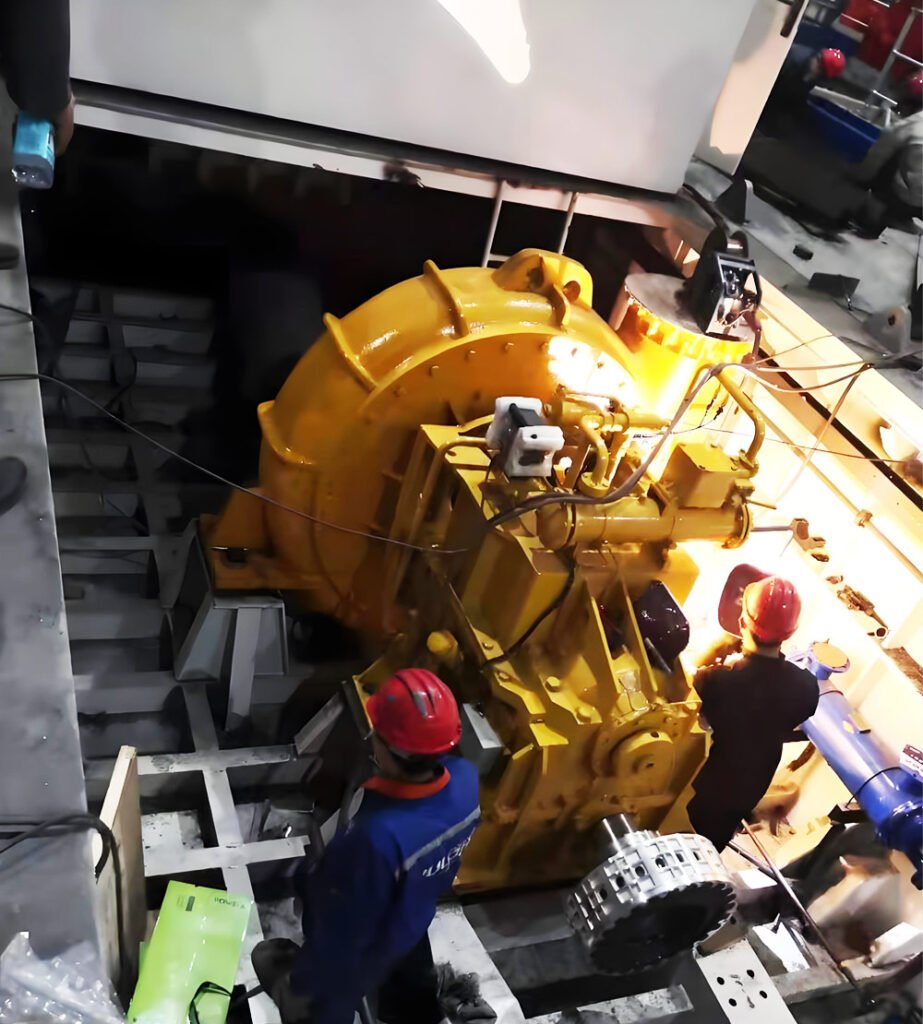

We offer global service. If your sand slurry pump requires maintenance, please contact us. Our engineers will promptly provide a solution to your project, minimizing losses.
Sand Slurry Pumps Spares & Parts
| Wet End Wear Parts | Bearing Parts | Shaft Seal Parts | Other Parts |
|---|---|---|---|
| | |||
| | | ||
| | | ||
| | | | |
| | | | |
| | | |
FAQ
As we all know, sand slurry contains a lot of sand and gravel and is prone to sedimentation. Stable sand slurry delivery requires a pump with strong suction power, and we typically use a sand slurry pump.
To prevent sedimentation, Kingda's submersible sand pumps are equipped with a stirrer. This provides continuous agitation, preventing sand from settling and clogging.
For horizontal sand slurry pumps, we design a longer suction line and equip it with a jet agitator. This jet agitator ensures smooth sand slurry suction.
In short, sand slurry pumping is a complex task, requiring engineers to design a fluid delivery solution tailored to the entire project to achieve maximum economic efficiency.
Have More Questions Please Contact Us
