Horizontal Slurry Pump
We offer competitive pricing to help you reduce costs with reliable quality.
Kingda Horizontal Centrifugal Slurry Pump
Horizontal centrifugal pumps have many advantages. Due to the horizontal structure, in actual operation, horizontal centrifugal pumps will be more stable and able to withstand long-term impacts. The simple horizontal structure makes future maintenance simple and fast, saving a lot of time and cost.
When handling granular slurries such as ore slurry, mud, gravel, etc., horizontal centrifugal pumps will have stronger performance and longer service life than vertical pumps.
Kingda horizontal slurry pump is made of hard and highly wear-resistant alloy, which has ultra-high wear resistance and high impact resistance. It can buffer the impact of solid particles on the pump surface and maximize the service life of the slurry pump.
Kingda horizontal centrifugal slurry pump can also provide rubber wet end parts to ensure the corrosion resistance of the slurry pump, which can transport corrosive slurry in mining or chemical industries.
No clogging
Less maintenance
Longer service life
Low operating cost
Interchangeable spare parts
Horizontal Slurry Pump Applications
Kingda Horizontal Slurry Pump can cover most application scenarios, conveying after ore crushing, mill discharge, cyclone feed, flotation process, middling regrinding, tailings conveying, slurry pumping, filter press feed, dredging, FGD application.
Kingda horizontal centrifugal slurry pump can cope with various severe working conditions without clogging. It can effectively handle dense ore slurry, foam slurry, highly abrasive large particle slurry, non-Newtonian fluid, animal waste, chemical slurry, fly ash, gravel, minerals and other highly abrasive slurries with suspended solids.
Horizontal Slurry Pump Types
Since 1948, Kingda has been focusing on the design and production of Slurry Pumps. We have a full-process slurry pump production chain. Kingda not only provides slurry pumps, but also a supplier of fluid transportation solutions.
KSH Series Horizontal Slurry Pump
- Flow Rate (m³/h): 10 – 14000
- Head (m): 10 – 70
Applications:

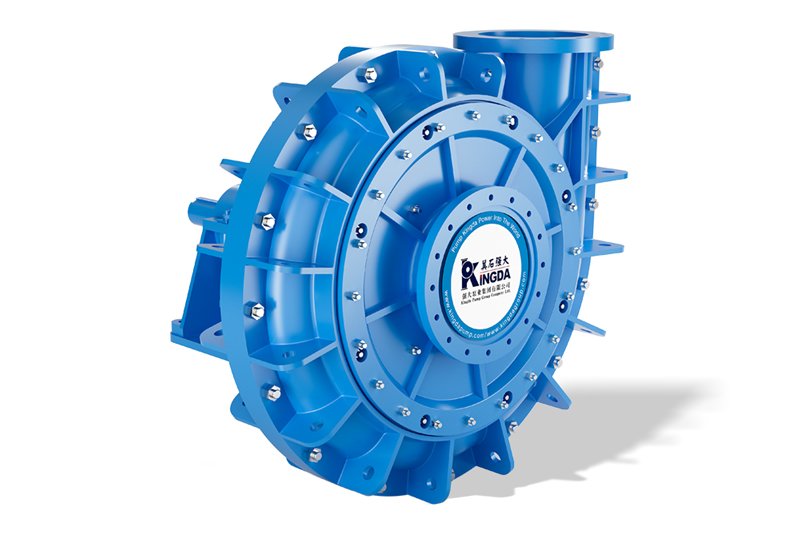

- Mill Discharge
- Grinding Circuit
- Tailings Pumping
KSG Series Horizontal Slurry Pump
KSG Gravel Pump is specially used for conveying slurry containing large particles. The wet end parts are made of high chromium alloy material, which makes KSG horizontal slurry pump have super strong abrasion resistance, greatly extending the service life, reducing maintenance times and reducing operating costs.
- Flow Rate (m³/h): 60 – 4000
- Head (m): 10 – 60
Applications:
- Coarse Ore Conveying
- Tailings Backfilling
- River Dredging
KMS Series Horizontal Slurry Pump
- Flow Rate (m³/h): 200 – 24000
- Head (m): 10 – 60
Applications:
- Mineral Processing
- Grinding and grading
- Tailings Transportation

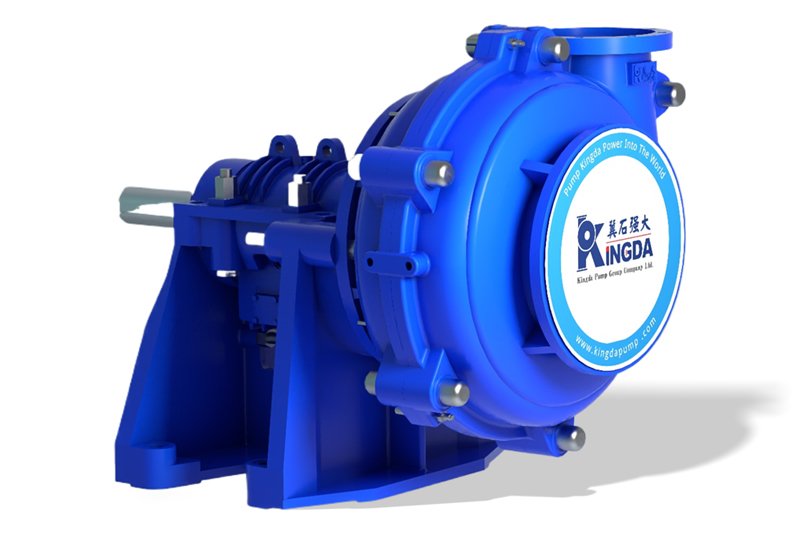

KSHF Series Horizontal Slurry Pump
- Flow Rate (m³/h): 10 – 1600
- Head (m): 10 – 68
Applications:
- Mine Flotation Process
- Chemical Industry
- Papermaking Industry
WN Series Horizontal Slurry Pump
- Flow Rate (m³/h): 600 – 25000
- Head (m): 20 – 80
Applications:
- River Dredging
- Sand Mining
- Land Reclamation
See Full Horizontal Slurry Pump Options
| Horizontal Pump Types | Downloads |
|---|---|
Kingda’s Advanced Wear-Resistant Materials for Demanding Applications

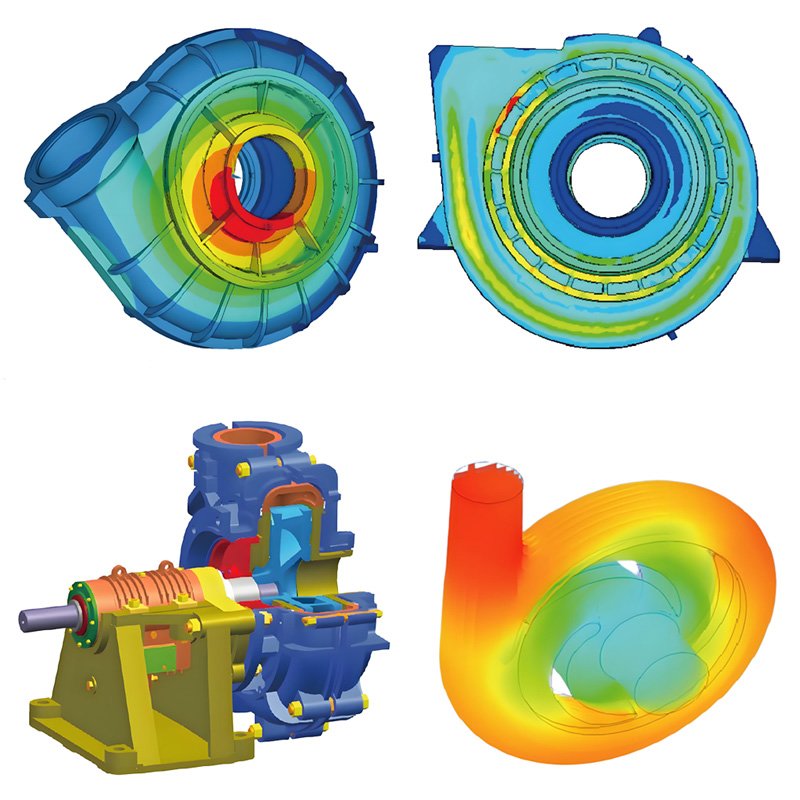

Materials and Manufacturing Processes of Horizontal Slurry Pumps
Kingda has been working tirelessly on the development of wear-resistant materials. After years of experience and project examples, Kingda has developed a variety of wear-resistant materials such as rubber, alloy metal, wear-resistant ceramics, stainless steel, etc.
Different wear-resistant and corrosion-resistant materials can be selected according to the nature, particle size, corrosiveness, temperature, etc. of the medium being transported by the customer.
Kingda uses advanced heat treatment technology to make the chromium compounds in the alloy metal evenly distributed and have strong hardenability, effectively improving the hardness and wear resistance of the material, and optimizing the rubber production formula, so that Kingda rubber materials have excellent wear resistance and impact resistance, and the wear resistance is 2-3 times that of ordinary rubber materials.
Our expertise ensures reliable and efficient solutions tailored to your needs
Since 1948, we not only provide horizontal slurry pumps, we are also your fluid conveying solution provider. From the design of fluid conveying projects to the full range of horizontal slurry pumps, our services cover the entire process.
The replaceable parts are interchangeable with the horizontal slurry pump parts of some world-renowned slurry pump manufacturers, which greatly saves your time and operating costs.
Full-Process Manufacturing Capability for Horizontal Slurry Pumps

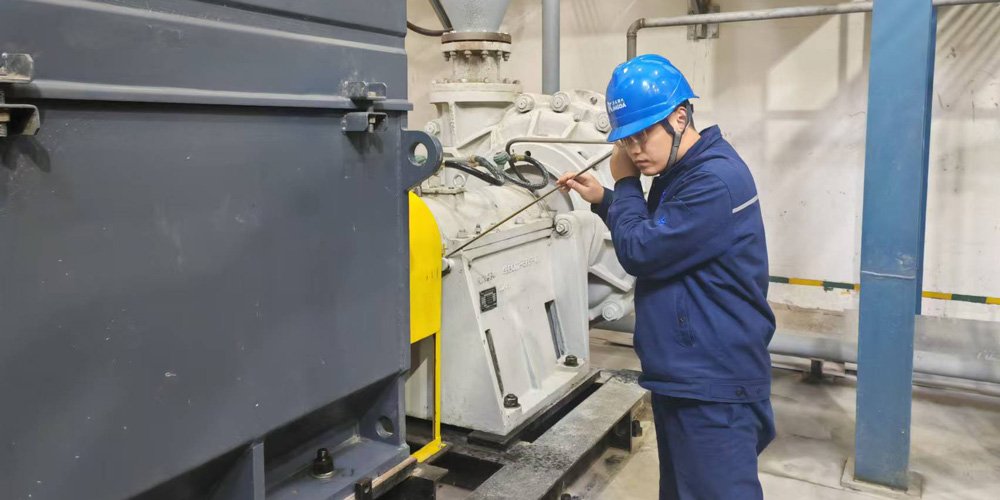

Always On Time, Always Backed by Experts
We know that providing high-quality products is only the first step, and having a full range of maintenance services is the most important.
We understand that any project has strict delivery and downtime requirements, so we provide fast installation and on-site guidance services around the world to provide reliable support for your project, ensure that production can proceed steadily, and minimize your time and use costs.
Horizontal Centrifugal Slurry Pump Parts
| Wet End Wear Parts | Bearing Parts | Shaft Seal Parts | Base |
|---|---|---|---|
| | |||
| | |||
| | | ||
| | | ||
| | | | |
| | | | |
| | | |
Have More Questions Please Contact Us
More information
Pump Head Explained: Calculation, Formula, Performance Curves
When we select a pump, we will learn about the pump head. Maybe you will be confused about this, don’t worry, this article will explain
Ultimate Guide to Submersible Pumps: Types, Working, and Uses
Are you worried about choosing the right submersible pump, this guide will comprehensively explain the knowledge points about submersible pumps. In this article you will
We'd Like To Work With You
Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right pump you want.
FAQ
Horizontal centrifugal pumps are widely used in agriculture, municipal water supply, and industry. They are horizontal pumps that transport fluids through the action of centrifugal force.
Working principle: Horizontal centrifugal pumps generate centrifugal force through the rotation of the impeller. The fluid enters the pump under the action of centrifugal force. The high-speed rotating impeller pressurizes the fluid and discharges it from the pump outlet.
3 types of horizontal centrifugal pumps: single-stage pumps, multi-stage pumps, and single-suction pumps.
The main components of horizontal centrifugal pumps: impellers, pump casings, bearings, mechanical seals, and volutes.
- Structure: Horizontal pumps are installed horizontally on the ground, while vertical pumps are installed vertically on the ground.
- Floor space: Horizontal pumps generally occupy a larger space, and the area needs to be considered when installing. Vertical pumps occupy a smaller space and can be installed in a small space.
- Application: Horizontal pumps are suitable for long-term delivery of large flow and abrasive slurry, such as mines and electricity. Vertical pumps are mostly used in water supply, mine water discharge and other places with compact space.
