Solids Handling Pump

Kingda solids handling pump is designed for the harshest environments, the optimized wide fluid passage ensures no clogging, even with large solids or sharp gravel.

Understanding What is a Solids Handling Pump?

Solids handling pumps are specialized pumps designed for conveying fluids containing solid particles. They typically feature wide flow paths and large inlet and outlet diameters to prevent clogging.

To prevent abrasive wear on the pump body caused by solid particles in slurries, such as mud, ore slurry, fly ash, gravel, and sewage, solids handling pumps are typically constructed of wear-resistant alloys, significantly extending the pump’s service life.

Solids handling pumps are widely used in industries such as mining, dredging, and wastewater treatment. They withstand the abrasive and corrosive effects of slurries, which are difficult for traditional pumps to resist, minimizing the risk of clogging and corrosion.

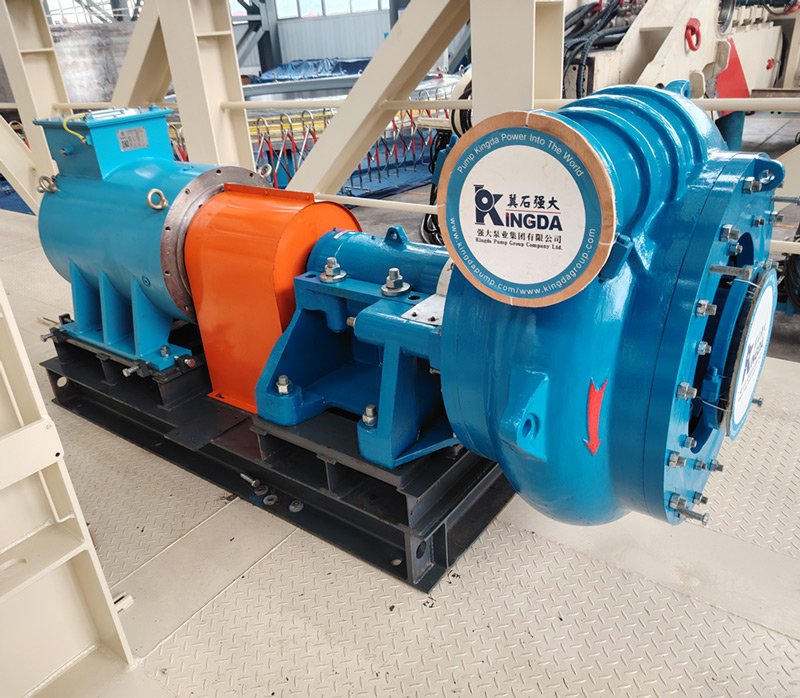

Solids-Handling-Pumps

Discover how Kingda solids handling pumps can handle the most demanding applications. With a large-diameter impeller design and wide fluid passages, we eliminate clogging and can handle solids up to 400mm in diameter.

The advanced sealing system features independent self-cleaning and filtration systems, ensuring the seal remains permanently clean. This eliminates pump leaks caused by abrasive or corrosive fluids.

Why Choose Kingda Solids Handling Pump?

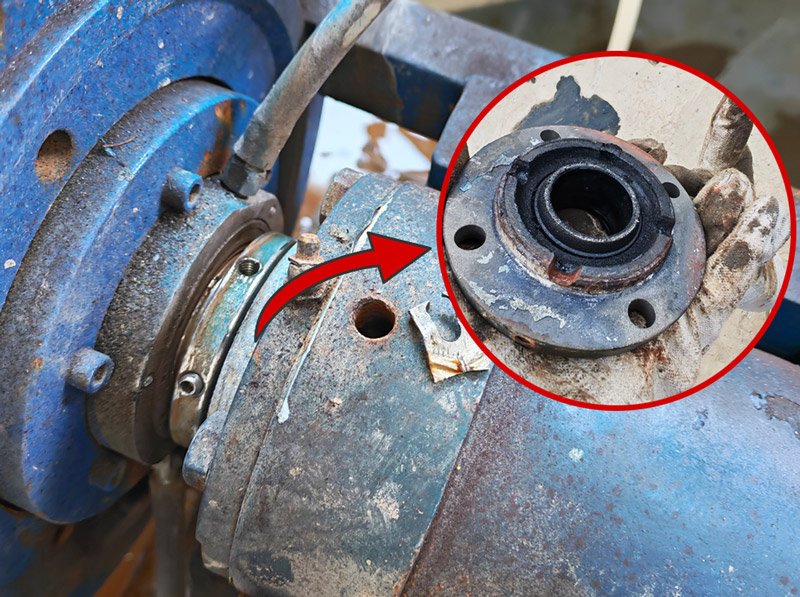

The Problems with Traditional Pumps

Clogging

Traditional pumps are prone to inlet and impeller clogging when pumping fluids containing solid particles or viscous fluids.

Rapid Wear

Ordinary metal materials are difficult to withstand the abrasive effects of sand or gravel for long periods of time.

High Cost of Use

Frequent replacement of vulnerable pump parts not only increases costs but also consumes significant maintenance time.

Seal Leakage

Pump leakage is a common problem, and traditional pumps are unable to withstand the high-speed impact of slurry for long periods of time.

Low Efficiency

When the solids content in the fluid increases, the pumping efficiency of traditional pumps is significantly reduced.

The-Problems-with-Traditional-Pumps

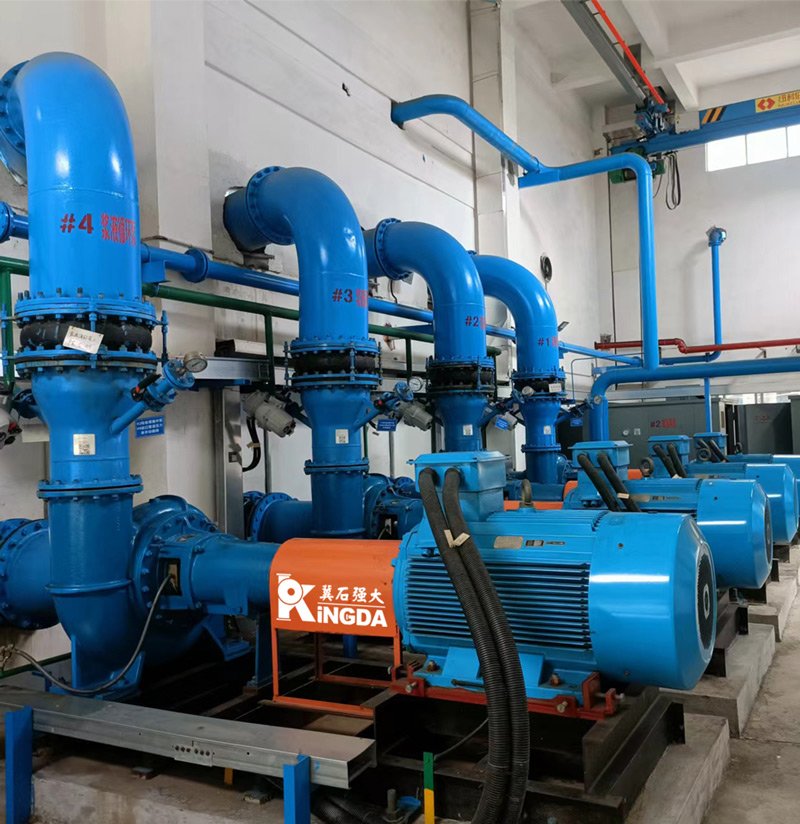

The Solutions Only Kingda Delivers

The-Solutions-Only-Kingda-Delivers

Clog-free

Kingda increases the impeller diameter, increases internal space, and widens the volute-shaped flow path to ensure clogging-free operation.

Wear-resistant materials

Kingda offers high-chromium, ultra-wear-resistant alloys, and rubber materials, depending on the physical properties of the material being conveyed, effectively extending service life.

Modular parts

Kingda pumps feature a modular design, maximizing part interchangeability, significantly reducing costs and maintenance time.

Advanced sealing system

Kingda's sealing system features advanced filters, effectively preventing slurry from impacting and eroding the seals, reducing the risk of leakage.

Hydraulic design

By optimizing the hydraulic design and optimizing the flow path geometry based on the characteristics of solids fluids, the conveying efficiency of solids handling pumps is significantly improved.

Heavy-duty construction

Kingda solids handling pumps utilize a heavy-duty structure and thickened pump shaft, significantly enhancing operational stability and safety.

Have drawings or specs?

Email them to info@kingdagroup.com for a faster, tailored quote.

For this project, we designed a comprehensive and efficient fluid delivery system for a subway tunnel boring machine (TBM), enabling the extraction of high-solids slurry from vertical shafts nearly 100 meters deep.

A Booster Station was installed at the bottom of the deep shaft. By monitoring the pump’s real-time flow rate, it provides stable pressure throughout the entire pumping and delivery system, keeping the delivery system in optimal condition and enabling ultra-long-distance, high-pressure delivery.

Applications of Solids Handling Pumps

Sewage treatment

Sewage contains large amounts of household garbage and plant debris. Solids handling pumps can smoothly transport these solids without clogging.

Food waste

The waste generated during food processing contains large amounts of viscous slurries and oils, making it difficult for traditional pumps to transport these slurries.

Paper mills

The pulp produced during the papermaking process contains large amounts of fiber, which can easily cause impeller clogging. Solids handling pumps can effectively prevent clogging.

Mining

The mining industry uses large amounts of slurries containing solids, including sharp, hard gravel. Traditional pumps can barely withstand the impact of these gravel.

Mining beneficiation

Mining beneficiation uses large amounts of chemicals, which are not only abrasive but also corrosive.

Industrial wastewater

Many industrial processes generate large amounts of wastewater containing sand and fly ash. Solids handling pumps can effectively treat this wastewater.

Dredging

Dredging requires pumping large amounts of silt and seawater. Solids handling pumps can not only handle silt but also prevent seawater from corroding equipment.

Dewatering

Solids handling pumps are widely used in mining, municipal administration, and factories for drainage, such as sumps in mines, wastewater in mines, and dewatering in flood disasters.

Kingda Solids Handling Pump

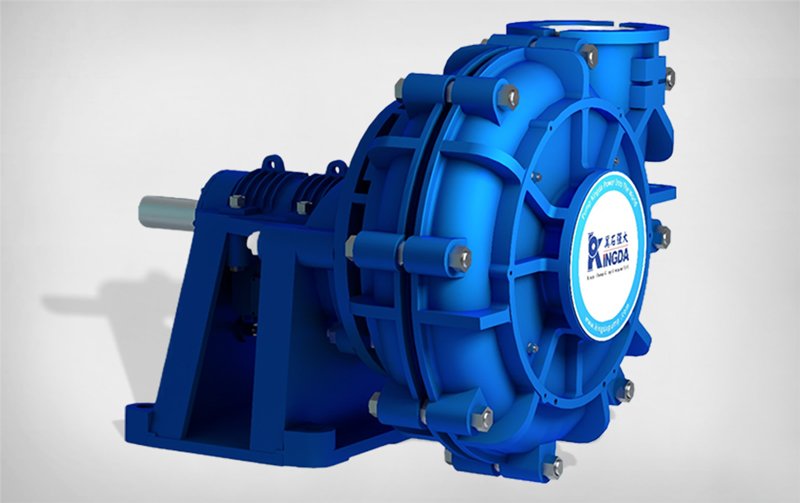

Heavy Duty Solids Handling Pump

Heavy Duty Solids Handling Pump

🔸Discharge Diameter(mm): 20 ~ 650

🔸Capability(m³/h): 10 ~ 14000

🔸Head(m): 6 ~ 70

Solids-Handling-Sewage-Pump

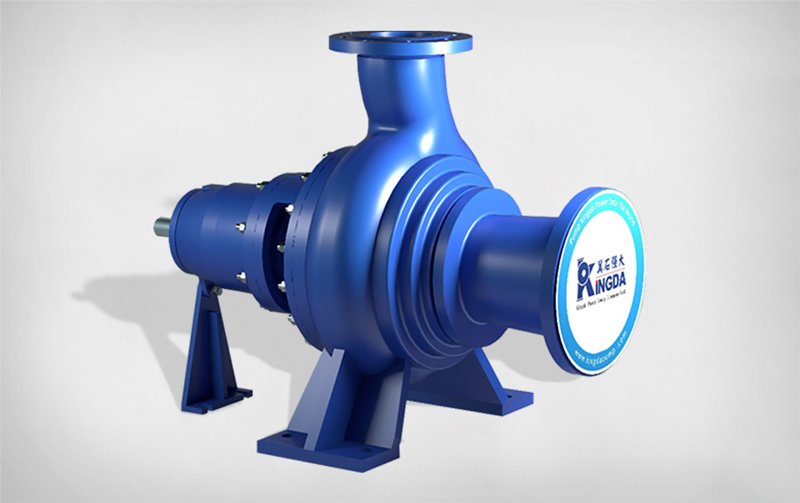

Solids Handling Sewage Pump

🔸Discharge Diameter(mm): 40 ~ 50

🔸Capability(m³/h): 10 ~ 3000

🔸Head(m): 5 ~ 80

Submersible-Solids-Handling-Pump

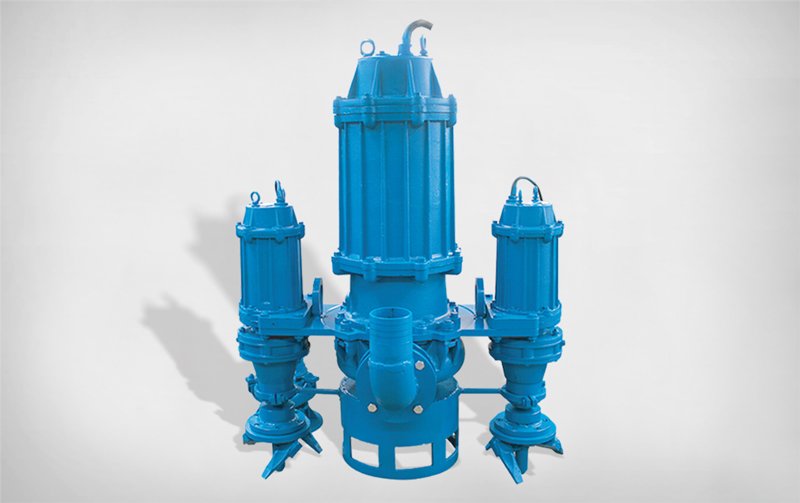

Submersible Solids Handling Pump

🔸Discharge Diameter(mm): 50 ~ 350

🔸Capability(m³/h): 30 ~ 3500

🔸Head(m): 10 ~ 120

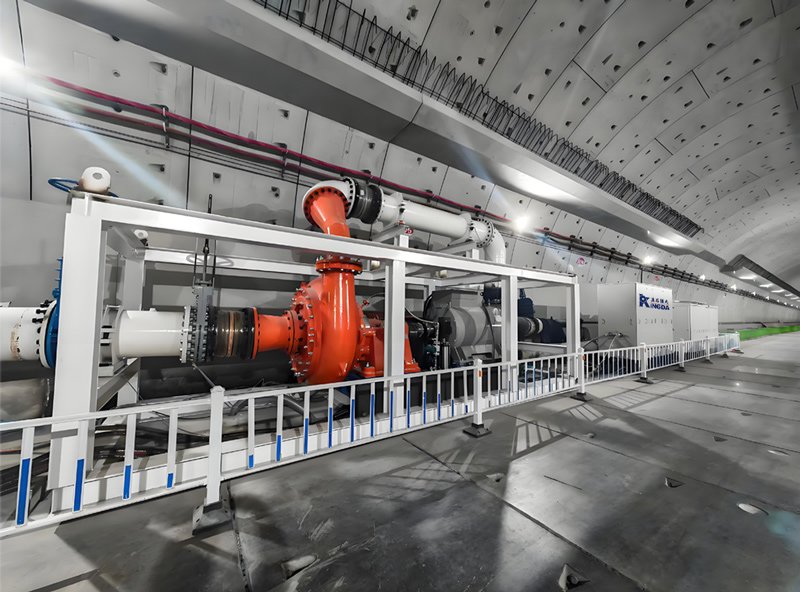

Solids-Handling-Dewatering-Pump-Packages

Solids Handling Dewatering Pump Packages

Kingda solids handling dewatering pump packages are not just a single pump, but a complete delivery system. They can be installed in both fixed and mobile configurations.

Solids handling dewatering pump packages include a solids handling pump, a drive system (electric motor or diesel engine), piping equipment (inlet and outlet pipes, valves), a control system (PLC control cabinet, remote monitoring system), and a base (fixed or mobile).

The Kingda dredge pump is constructed from ultra-wear-resistant metal. Its large inlet and outlet diameters ensure no clogging and can handle solid particles up to 400mm in diameter—an incredible feat.

The metal impeller is constructed from high-chromium alloy, offering exceptional abrasion and corrosion resistance. When sharp, hard gravel or sand impacts the metal surface at high speed, the impeller withstands the impact with exceptional resilience.

Proven Solutions Backed by Project Results

Molybdenum Tailings Transportation

This project uses four pumps in series with a total head of 280 meters. The long conveying distance and high concentration of this project are extremely rare. The main components of the solids handling pumps used in this project have a lifespan of over 3,000-6,000 hours, which has been well-recognized by the user.

Design: Four pumps are connected in series, forming three groups, totaling 12 pumps. Each pump is equipped with variable frequency drive.

Workstation: Tailings Booster Pumping Station

Transport Distance: 6.8 km

Transport Medium: Slurry Concentration: 25% (for light tailings), 40% (for dense tailings)

Solids-Handling-Pump-for-Molybdenum-Tailings-Transportation

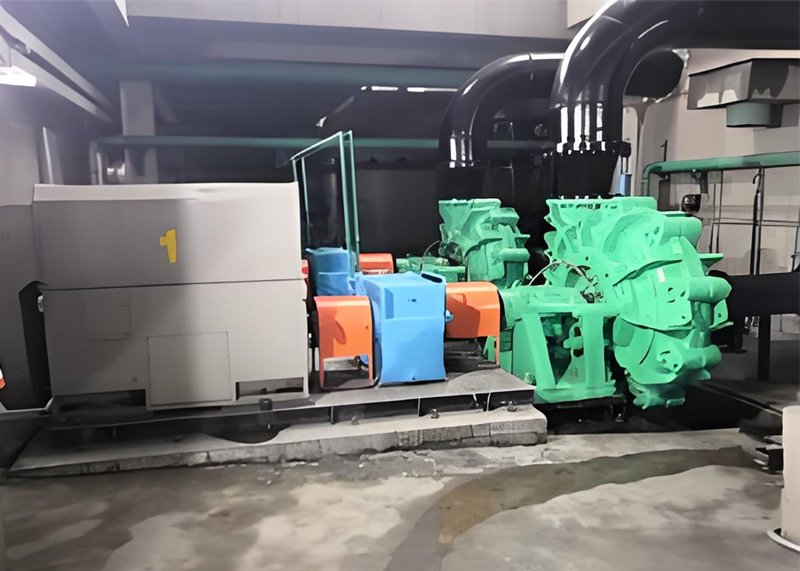

Cyclone feed

Used station: Primary cyclone feed pump

Conveying medium: Slurry concentration: 50%

Ore density: 2.688 t/m³

Slurry density: 1.46 t/m³

Ore particle size: -200 mesh accounts for 50%

Solids-Handling-Pump-for-Cyclone-Feed

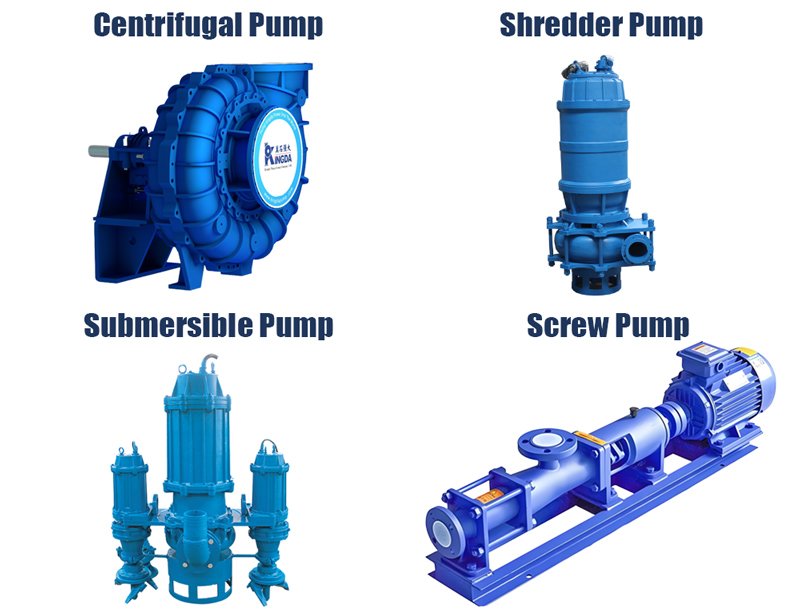

Types of Solids Handling Pumps

Centrifugal Pumps: Centrifugal pumps are one of the most common types of solids handling pumps. They use the rotating impeller to generate centrifugal force, drawing slurries into the pump. They are often used for high-flow applications and feature a simple structure and easy maintenance.

Shredder Pumps: Shredder pumps incorporate a cutting blade mechanism to shred long fibers, solids, and plant debris in liquids, effectively preventing clogging.

Screw Pumps: Screw pumps propel slurries through a sealed chamber formed by the stator and rotor within the pump. They are suitable for slurries with relatively high viscosities and concentrations.

Submersible Pumps: Submersible pumps feature an integrated motor and pump design, resulting in efficient operation and a compact design that allows them to be submerged in water. They are widely used in sumps and mines.

Types-of-Solids-Handling-Pump

Best Solids Handling Pumps Manufacturer, Since 1948

Since 1948, Kingda has specialized in the manufacture of solids handling pumps. As China’s first solids handling pump manufacturer, we offer a complete slurry pump manufacturing line, from design and casting to assembly.

Our extensive warehouse inventory houses tens of thousands of pump parts, allowing us to provide customers with pump parts in record time, significantly reducing maintenance time and costs.

We have a dedicated team of after-sales engineers, offering global maintenance services. If your pump has a problem, our engineers will promptly provide a solution.
