Vertical Sump Pump
The Kingda vertical sump pump is constructed from highly wear-resistant metal, meeting the requirements for conveying abrasive and corrosive fluids. Even fluids containing large particles or long fibers can be easily handled by the Kingda sump pump.
The KSS vertical sump pump is equipped with a filter at the suction inlet, which filters out any solids or fibers that could clog the sump pump, ensuring no clogging occurs, reducing maintenance frequency, and minimizing operating costs.

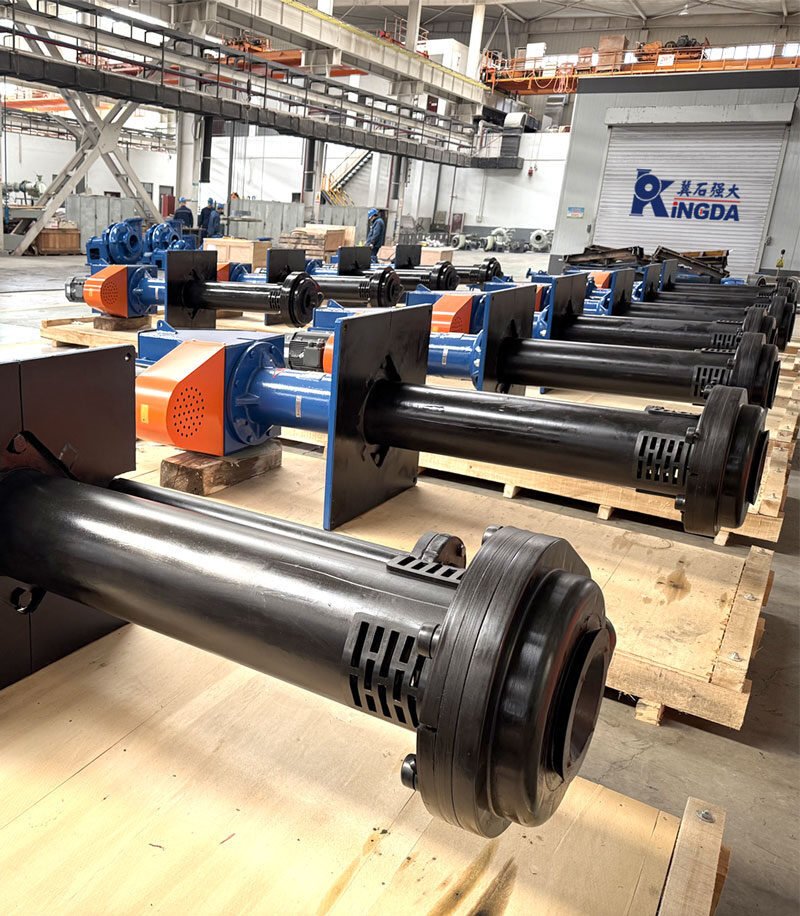

KSS Industrial Vertical Sump Pumps
The KSS vertical long shaft sump pump is a vertically mounted centrifugal slurry pump. The pump can be fully submerged in water for operation, allowing it to reach the bottom of the pool, which undoubtedly improves pumping efficiency. The motor is mounted at the top, which facilitates maintenance and reduces labor costs.
The industrial vertical sump pump eliminates the need for shaft seals and sealing water devices, avoiding downtime caused by leaks. Our engineers have redesigned the impeller and flow channels for conveying large particles and fibrous slurries, achieving clogging-free operation by increasing blade size and optimizing the hydraulic performance of the flow channels.
The wet end parts of KSS vertical slurry sump pumps can be made from high-chromium alloys, ductile iron, rubber, stainless steel, etc., depending on the medium being pumped. This variety of material options maximizes the service life of wear-prone parts, reducing downtime and significantly lowering user operating costs.
For deeper liquid levels, the KSS vertical pump can be upgraded with a guide bearing structure to improve operational smoothness and extend the pump’s length, thus expanding its application range.
The KSS vertical pump features a heavy-duty design, capable of handling the most demanding operating conditions, easily transporting highly abrasive mud or corrosive sulfur.
Its compact design saves valuable working space, and the precision-machined submersible parts can operate underwater for extended periods without corrosion, significantly extending the pump’s service life.
Vertical sump pumps are widely used in mining dewatering, wastewater collection pits, petrochemicals, irrigation, and industrial wastewater treatment.
Why Choose Kingda Vertical Centrifugal Sump Pumps
Common Problems with Ordinary Vertical Centrifugal Sump Pumps
Frequent Clogging
The suction inlet or impeller of a typical sump pump is frequently clogged by solid particles or long fibers, leading to blockages and potentially burning out the motor.
Rapid Wear
When handling abrasive or corrosive fluids, ordinary metal materials struggle to resist corrosion over extended periods, significantly reducing the lifespan of the pump shaft and impeller.
Difficult Maintenance
The interchangeability of parts for typical vertical sump pumps is poor, differing greatly from the standards of common horizontal pumps, and frequent maintenance is required, resulting in significantly increased downtime.
Difficult Level Control
Traditional vertical sump pumps may lack level sensors or have unreliable sensors, causing frequent motor restarts, which can easily lead to short circuits on the circuit board and even motor burnout.
How Kingda Vertical Centrifugal Sump Pumps Deliver Reliable Performance
Clog-Free
The KSS series sump pump features a bottom-mounted filter with an internal agitator, easily pumping even thick sediment layers and long fibers from the bottom of the pool.
Extremely Wear-Resistant
Wear-resistant components of the Kingda vertical sump pump, such as the impeller, are made of ultra-wear-resistant high-chromium alloy. The passivation film on the metal surface minimizes solid abrasion on the pump.
Easy Maintenance
The wear parts of the KSS vertical sump pump adhere to the same standards as those of common horizontal pumps, allowing for quick replacement with engineer recommendations.
Float Switch
The Kingda sump pump is equipped with a float switch and an internal reliable and sensitive level sensor, enabling automatic start and stop based on the liquid level. This prevents motor short circuits or corrosion caused by frequent pump start-stop cycles.
Ready to find the right vertical sump pump for your project?
Tell us about your requirements at info@kingdagroup.com — our engineers will provide the best solution for your needs.
Industrial Vertical Centrifugal Sump Pump
🔸Discharge Diameter(mm): 40~300
🔸Capability(m³/h): 18~1267
🔸Head(m): 4~40
🔸Material: High wear-resistant alloys, Rubber
🔸Applications: Mining, Petroleum, Irrigation, Wastewater, Coal
Vertical Sump Pump Curve
Vertical Sump Pump Diagram
Need a reliable vertical sump pump for your system?
Email us at info@kingdagroup.com for technical support and a quick quote.
Applications of Vertical Sump Pump
Mining
In the mining industry, vertical sump pumps can easily transport abrasive slurries, from crusher slurry conveying and grinding mill discharge to tailings and slag transport.
Petrochemicals
Production processes in the petrochemical field generate large amounts of chemical wastewater, acid and alkali solutions, and oily slurries. Abrasion- and corrosion-resistant vertical sump pumps can pump materials stably and continuously over long periods.
Sand Washing Plants
Wastewater ponds and sedimentation tanks in sand washing plants contain large amounts of solid particles and slurry. This wastewater needs to be discharged from the ponds promptly. KSS vertical sump pumps can quickly process settled slurry without clogging.
Wastewater treatment
Vertical sump pumps can handle most industrial wastewater, including domestic sewage treatment, power plant circulating water, and paper mill pulp pumping. They can also handle abrasive and corrosive wastewater.
The Kingda sump pump features a heavy-duty one-piece shaft design and a robust, monolithic housing. A filter at the pump inlet effectively reduces the risk of clogging.
The vertical sump pump can also be equipped with a float switch, which automatically starts and stops based on liquid level, minimizing labor costs.
Standardized parts are interchangeable with commonly used horizontal pump components, simplifying maintenance and significantly reducing user parts inventory costs, enabling real-time replacement.

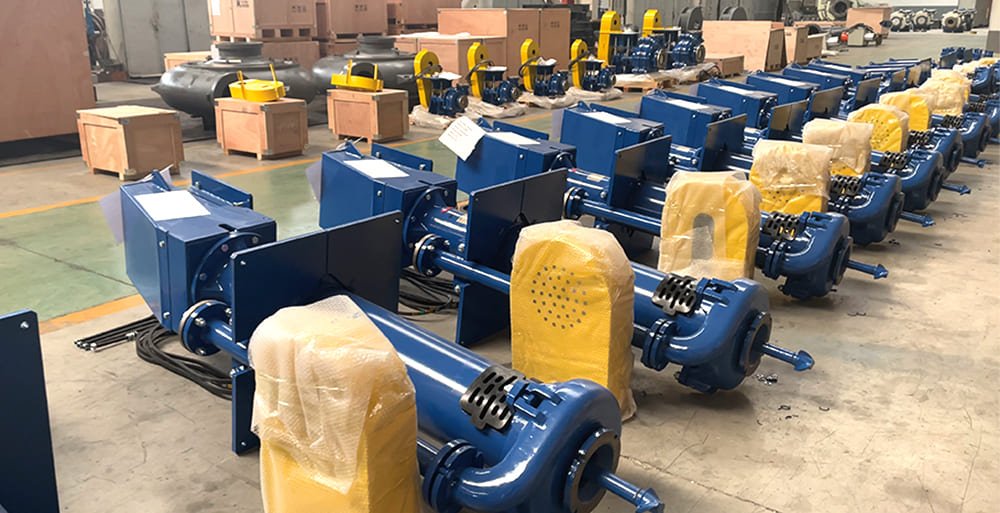

Best Vertical Sump Pump Manufacturers in China, Since 1948
As one of the earliest vertical sump pump manufacturers in China, Kingda has been committed to the research and development and production of industrial vertical sump pumps. Through serving numerous users, our high quality and efficiency have been proven time-tested and remain excellent.
We not only sell vertical pumps, but also provide professional maintenance services. Kingda’s professional maintenance team possesses comprehensive knowledge. If your pump encounters problems or requires maintenance, our maintenance engineers will provide you with professional solutions as quickly as possible, minimizing your losses.
Vertical Sump Pump Parts
| Wet End Wear Parts | Bearing Parts | Shaft Seal Parts | Other Parts |
|---|---|---|---|
| | |||
| | | ||
| | | ||
| | | | |
| | | | |
| | | |
FAQ
Structurally, a vertical sump pump has its pump head submerged in the liquid, with the motor positioned above the liquid level. A submersible pump, on the other hand, has a single integrated motor and pump unit, requiring the entire pump to be submerged during operation.
Because the motor of a vertical pump is always exposed to air, while the motor of a submersible pump is always submerged in liquid, the vertical pump is easier to maintain, and the open airflow allows for better motor cooling, resulting in a longer lifespan. However, the submersible pump is quieter than the vertical pump.
However, vertical sump pumps require large support structures for installation, meaning more space and manpower are needed. The compact design of the submersible pump saves space and is suitable for confined spaces.
A vertical float switch is a device that automatically starts and stops the pump based on the liquid level. It starts and stops the motor according to high and low liquid level warning lines.
Adjusting the vertical float:
Turn off the power.
Adjust the cable length.
Near the float, there is a counterweight module on the cable. This module adjusts the float's floating angle. Moving the counterweight closer to the float shortens the cable's free length, lowering the starting liquid level and causing the pump to start earlier.
Moving the counterweight away from the float increases the cable length, raising the starting liquid level and causing the pump to start later.
Testing the float:
Turn on the power and manually raise the float at the wellhead to check if the start/stop switch is triggered.
The Top 10 vertical sump pump manufacturers are ranked based on each manufacturer's production capabilities, durability, and real-world application performance. This answer provides a clear overview to help you understand and choose a reliable supplier.
- Metso
- Weir
- ITT
- Sulzer
- Kingda
- Flowserve
- North Ridge Pumps
- FLSmidth
- Serfilco
- Carver pump
